Evenflo Revolve180 LiteMax NXT Recall: Recline Indicator Issue Explained

If you own an Evenflo Revolve180 LiteMax NXT or a Shyft Intuiti travel system that came with one, you may have seen the word “recall” attached to your baby’s car seat and felt your stomach drop. That reaction is completely normal. This is the seat your newborn rides in, maybe every single day.

Take a breath first. Then get the three answers you actually need:

Is my seat affected? Only some seats are recall covers Revolve180 LiteMax NXT infant car seats with the rotating base that were made before April 1, 2025 and only if the model number is on Evenflo’s list. In total, 22,981 seats in the United States are included. If your seat was made on or after April 1, 2025 or you have the non-rotating LiteMax NXT, your seat is not part of this recall.

Can I keep using my seat? Yes, in most cases. Evenflo has published official interim guidance with specific approved ways to keep using the seat while you wait for the fix, including installing the carrier without the rotating base. The problem sits in the base’s recline indicator, not in the carrier your baby sits in. The full options are explained further down, because the details matter here.

How do I get the fix? Evenflo will send affected owners a free repair kit. You do not return the seat to the store. You register your seat on Evenflo’s website, and the company will notify you when the kit is ready and how to receive it.

Everything below walks through the rest slowly: what actually went wrong with the recline indicator, why the angle of an infant seat matters so much, the exact model numbers and dates, a step by step check you can do in your driveway in about two minutes, and what to do if your baby is due any day and the kit has not arrived yet.

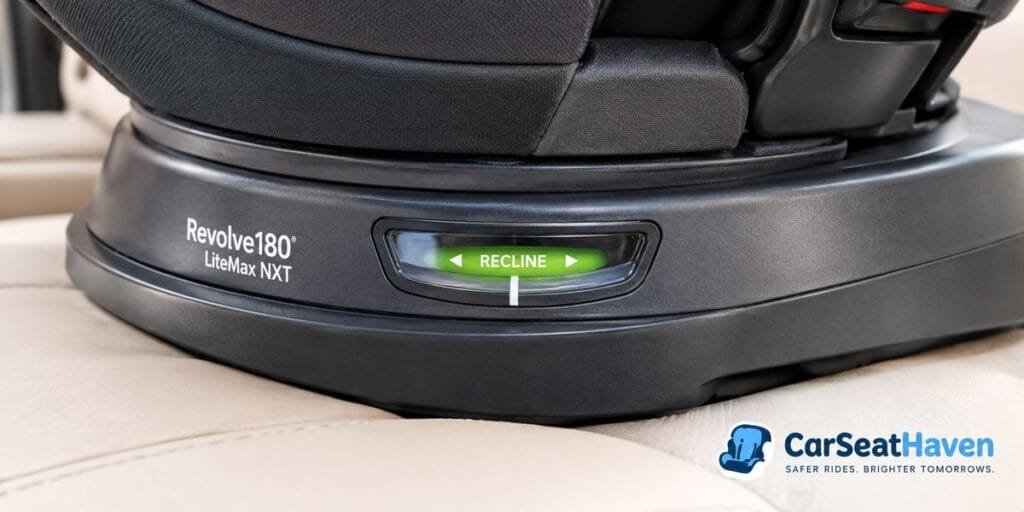

What the Recline Indicator Problem Actually Is

The Revolve180 base is the part that made this seat popular. It stays installed in your car, and it swivels toward the door so you can lift your baby in and out without twisting your back. Built into that base is a small level indicator, a window with a pendulum-style mechanism inside. When you install the base, the window shows green if the seat is sitting at a recline angle Evenflo considers correct, and red if the angle is off and you need to adjust.

On the affected bases, that indicator was calibrated incorrectly at the factory. At certain angles, the window showed green when the seat was actually sitting more upright than it should have been. Read that again, because it is the heart of the whole recall: you could follow every step in the instruction manual, get a green window, trust that green window completely, and still end up with your baby riding at the wrong angle. The seat did not break. Nothing cracked or snapped. The little gauge that tells you “this is right” was, on some bases, telling the truth a little too early.

This came to light through testing, not through injuries. Federal safety testing of the seat found that a crash test dummy recorded chest acceleration and head injury scores above the limits set by FMVSS 213, the federal standard every child restraint sold in the US has to meet. The federal standard is called the Federal Motor Vehicle Safety Standard, and Standard No. 213 covers child restraint systems. When engineers traced the results back, the recline angle was the thread that connected them. Evenflo says it began investigating as soon as the test results were shared with the company, and by late July it had worked out that seats built before a design change in March 2025 could carry the miscalibrated indicator. Seats built after that change got the corrected indicator, which is why the recall stops at April 1, 2025 production.

In August 2026, Evenflo announced a voluntary recall with the National Highway Traffic Safety Administration (NHTSA) covering 22,981 seats. You can read the official details yourself on NHTSA’s recall lookup and in Evenflo’s own recall notice. No injuries have been reported in connection with this issue. That is worth sitting with for a second. Recalls like this one exist because the testing system caught a problem on a test bench before it hurt a child in the real world, and that is the system working the way it is supposed to.

One thing that confuses a lot of parents: the recall is really about the base, not the carrier. The recline indicator lives on the rotating base. The carrier your baby is buckled into, the part you carry into the house and click onto a stroller, is not the defective part. That is exactly why Evenflo’s interim guidance includes ways to use the carrier without that base. Keep that carrier versus base distinction in mind, because it makes every step below much easier to understand.

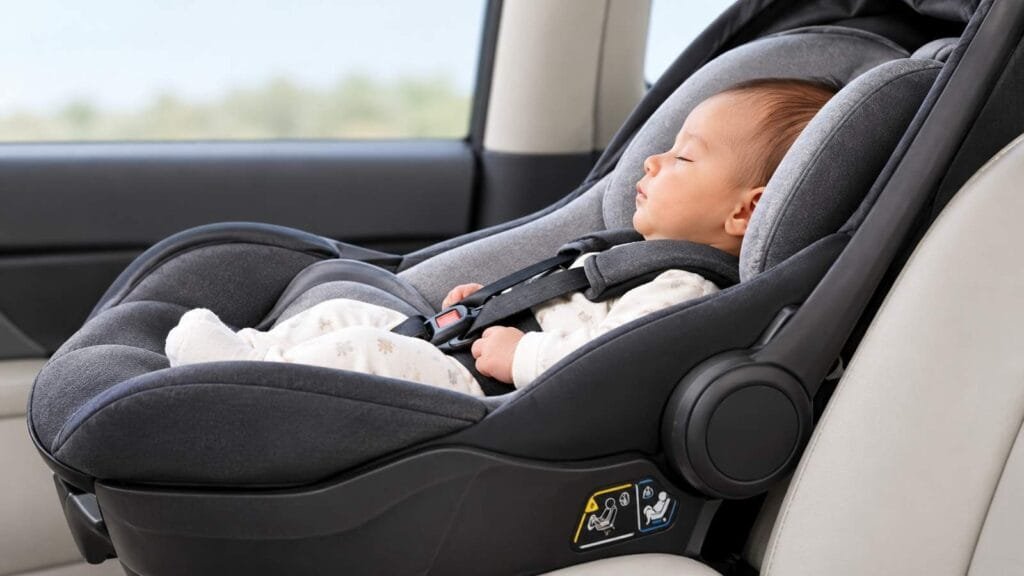

Why Recline Angle Matters So Much for a Newborn

Parents hear “recline angle” and it sounds like a comfort setting, like tilting an office chair. For a baby under six months, it is closer to a breathing setting. Here is the simple version.

A newborn’s head makes up about a quarter of their whole body weight, and their neck muscles are weak for the first few months. They cannot hold their head up, and they cannot push it back up if it flops forward. A baby’s airway is also tiny and soft, roughly the width of a drinking straw, and it has not firmed up yet the way an older child’s has.

Now picture a baby sitting too upright. Gravity pulls that big, heavy head forward until the chin drops toward the chest. When that happens, the soft airway kinks, a bit like a straw bending in the middle. Air can still move through a bent straw, just not as easily, and a sleeping newborn may not stir or cry when breathing gets harder. Pediatric experts call this head slump, and it is the reason infant car seats are built to hold babies in a semi reclined position instead of an upright sitting one. The recline is not about napping comfort. It holds your baby’s head back in a position where the airway stays open while they sleep, and babies sleep in the car a lot.

The angle matters in a crash too, just in a different way. A properly reclined rear facing seat cradles the baby so crash forces spread across their back, the strongest and flattest surface they have, while the shell absorbs and manages the energy. Sit the baby too upright and the way their body loads into the harness and shell changes. In the federal testing behind this recall, that change was enough to push the dummy’s head and chest injury scores past the legal limits. A small angle change at the base became a measurable difference at the baby’s head and chest.

Too much recline is not the goal either. Lay an infant seat back too far and the baby can slide and slump down into the seat in a crash, which brings its own problems. Car seat engineers work inside a fairly narrow window: reclined enough to keep a newborn’s airway open and spread crash forces, upright enough to keep the baby positioned correctly in the harness. The indicator window on your base exists to land you inside that window without a protractor and a physics degree. That is why a miscalibrated indicator is a genuine safety issue worth a recall, even though the seat looks and feels completely normal. You cannot see this defect. You can only check your model number and date, which is the next part.

If you take one habit away from this section, let it be this one: whatever seat you use, glance at your baby’s head position on drives. Chin off the chest, head resting back, straps snug. That ten second check is good practice with any infant seat, recalled or not.

Exactly Which Models and Dates Are Affected

Evenflo’s rule is simple, and both parts have to be true at the same time:

1.    Your model number appears on the affected list below.

2.    Your seat was manufactured before April 1, 2025.

If only one of those is true, your seat is not recalled. A listed model number with a manufacture date of April 1, 2025 or later is fine, because those bases left the factory with the corrected indicator.

The seats were sold three ways: as a stand-alone Revolve180 LiteMax NXT car seat, as part of the Shyft Intuiti, Shyft Intuiti+ and Omni Ultra travel systems, and as a separate accessory rotating base that some families bought for a second car. Here is the complete list from Evenflo’s notice.

Just as helpful is knowing what is not on the list:

·       The standard LiteMax NXT with the non-rotating, stationary base is not recalled. Only the Revolve180 rotating base models are included.

·       Any Revolve180 LiteMax NXT made on or after April 1, 2025 is not recalled, even if the model number matches.

·       No other Evenflo seats are part of this recall. If you own a Revolve360, a Revolve360 Extend, a Revolve360 Slim or any other Evenflo model, this recall does not touch it.

·       The strollers in the Shyft Intuiti, Shyft Intuiti+ and Omni Ultra travel systems are not recalled. Only the car seat base and its indicator are the issue.

These affected seats came from the model’s first production run, built in the months before that April 1, 2025 cutoff. If you bought your seat in late 2024 or early 2025, especially as part of a travel system bundle, you are exactly the person who should do the two minute check in the next section.

How to Check Your Own Seat, Step by Step

You do not need tools for this, and you do not need to uninstall anything. The whole check is reading one label.

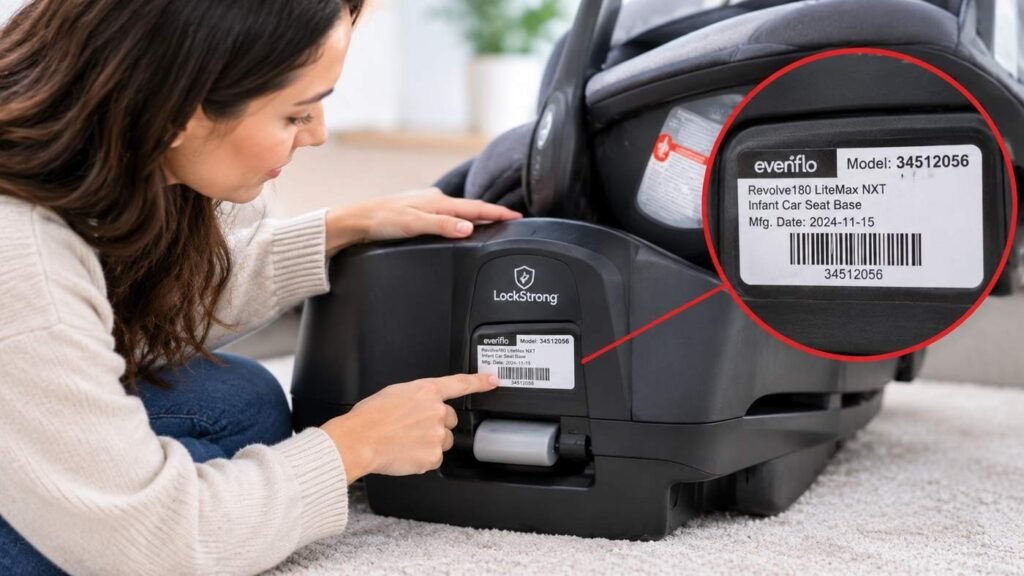

Step 1: Go to the base, not the carrier. The information you need is on the installed rotating base in your car. If the carrier is clicked in, you can usually still see what you need, but popping the carrier off makes it easier.

Step 2: Find the label. Evenflo puts the product label in the center of the car seat base, on the LockStrong belt tensioning panel. Look for the sticker that lists the model number and the date of manufacture. Phone flashlights help here. Garage lighting is never as good as you think it is.

Step 3: Read the two numbers. Write down or photograph the model number and the manufacture date. A photo is a good idea anyway, because you will want both numbers again when you register.

Step 4: Compare the model number to the table above. If your model number is not on the list, you are done. Your seat is not recalled, full stop.

Step 5: Compare the date. If the model number matches, check the manufacture date. Before April 1, 2025 means your seat is included in the recall. April 1, 2025 or later means it is not, even with a matching model number.

Step 6: Check every base you own. Plenty of families bought the accessory base (model CS900610000) for a second vehicle or for a grandparent’s car. Check those too. A base that lives in a car you rarely drive is still part of this if it matches.

Step 7: If your seat is affected, register it the same day. Registration is how Evenflo knows where to send the free repair kit. Do it while the label photo is still on your phone. The registration link and the full claim steps are in the sections below.

A few situations that come up a lot:

·The label is worn or unreadable. Call Evenflo’s ParentLink team at 1-800-233-5921 (Monday to Friday, 8:00 a.m. to 5:00 p.m. ET) or email parentlink@evenflo.com. They can help you work out whether your seat is included.

·You bought the seat secondhand or received it as a hand-me-down. The check is exactly the same, and you can still register the seat in your name to receive the kit. Recalls follow the product, not the original buyer.

·You have the travel system but lost the box. The travel system model numbers start with TS, but the deciding check is still the base label in your car: model number plus manufacture date. If you are unsure which number you are looking at, Parent Link can confirm it with you on the phone.

How to Use the Seat Safely While You Wait for the Fix

This is the part most parents actually came here for, so let us be precise. Evenflo’s official position is that affected seats may continue to be used, as long as you follow the company’s approved interim guidance. The guidance gives you five approved ways to use the seat until the repair kit arrives. Pick the one that fits your life, and use it consistently.

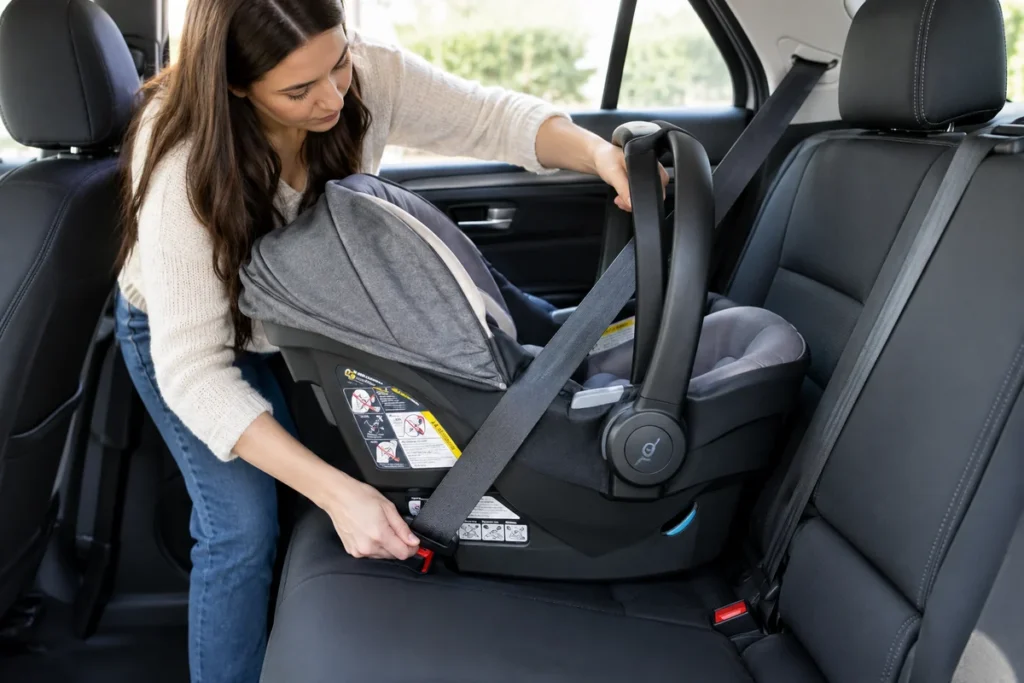

Option 1: Install the carrier without the rotating base. Every infant carrier like this one can also be installed on its own, belted directly into the vehicle without any base, following the instructions in your manual. Evenflo has a step by step installation video linked from its recall page if you have never done a baseless install. This option removes the reclining guesswork entirely, because the indicator on the recalled base is no longer part of the equation. It is also the option many families end up liking for travel and second cars, since it works in almost any vehicle.

Option 2: Use a compatible LiteMax NXT non-rotating base. If you already own the stationary LiteMax NXT base, or you decide to buy one, you can use it with your carrier. The non-rotating base is not part of this recall at all.

Option 3: Keep the rotating base, and use it with a load leg. Evenflo lists this combination as approved interim use: the carrier on its current rotating base, with the base’s load leg in use. A load leg is the support leg that extends down from the base to rest on the vehicle floor. If you are not sure whether your setup includes one or how it deploys on your base, that is a perfect question for ParentLink before you rely on this option.

Option 4: Keep the rotating base, with a slightly adjusted recline. Evenflo also approves using the current rotating base with the recline set slightly differently than the indicator suggests. Do not guess at this one. Vehicle seats slope at different angles, so the right adjustment depends on your car. Evenflo specifically asks parents to contact the ParentLink team for guidance on this option, at 1-800-233-5921. A short phone call gets you the exact instruction for your vehicle instead of a stranger’s guess on the internet.

Option 5: Keep using the carrier outside the car. Clicking the carrier onto a compatible stroller, or carrying your baby in it outside the vehicle, is not affected by this recall in any way. The issue only exists when the carrier is riding on the rotating base in a vehicle.

Two warnings belong here, and they are just as official in spirit as the options above. First, do not invent your own angle fix. Rolled towels, pool noodles and “it looks about right” are not on Evenflo’s list, and an angle you estimate by eye is exactly the problem this recall is about. If an adjustment method is not in the manual or on Evenflo’s recall page, do not use it. Second, do not stop using a car seat altogether while you wait. Holding a baby in your arms in a moving car is far more dangerous than any option on the list above. Every option Evenflo gives you keeps your baby in a properly installed restraint, and that is the only safe way for a baby to ride.

What Evenflo’s Fix Is, and How to Claim It

The remedy is a free repair kit. Evenflo says the kit is still being finalized, which is common in the first stretch of a recall: the company has to design the fix, get it approved, produce it in quantity and then ship it to tens of thousands of families. The kit will address the indicator problem on the base, and Evenflo will send it to registered owners with instructions as soon as it is available.

Here is how claiming it works, in order:

1.    Confirm your seat is affected using the label check above. Model number on the list, manufacture date before April 1, 2025.

2.    Register your car seat at Evenflo’s registration page. Registration is the step that puts you in line. Evenflo has said plainly that registered owners will be notified when the repair kit becomes available and told how to receive it.

3.    Watch for Evenflo’s notifications. Owner notification letters for this recall were scheduled to begin mailing after September 1, 2026, with a second notice to follow once the remedy itself is ready. If you registered online, expect updates through the contact details you gave.

4.    Do not return the seat to the retailer. Evenflo says this directly in its notice. The store cannot fix your base, and handing the seat back could actually slow down getting your kit. The fix comes from Evenflo, not from Target or Amazon or wherever the seat was bought.

5.    Keep using the seat under the interim guidance in the section above until your kit arrives and you have installed it.

If anything about your situation is unusual, a second base, a seat bought secondhand, an address change since you bought it, call ParentLink at 1-800-233-5921 or email parentlink@evenflo.com. Recall support lines deal with exactly these wrinkles all day, and sorting yours out takes minutes. You can also re-read the full official instructions any time on Evenflo’s recall page.

Two Quick Checklists: Travel System Owners vs Carrier-Only Owners

The recall lands a little differently depending on how you bought the seat. Find your situation below.

If you bought a Shyft Intuiti, Shyft Intuiti+ or Omni Ultra travel system:

·       Your stroller is fine. It is not recalled, and nothing about it changes.

·       The car seat carrier is fine on the stroller and fine carried by hand.

·       The part to check is the rotating base installed in your car. Do the label check on that base.

·       Your travel system model number starts with TS and appears in the table above if your bundle is included.

·       If your base is affected, your easiest interim options are usually the baseless install or calling ParentLink about the adjusted recline, since you may not own a second base.

·       Register the seat, even if Evenflo already has your details from a warranty registration. Recall notification runs off registration.

If travel systems are still on your shopping list, our Doona vs Evenflo Shyft DualRide comparison covers how these swivel and stroller style seats stack up against each other, and our hands-on style Doona vs Evenflo Shyft comparison tested by moms goes deeper on daily life with each one.

If you bought the Revolve180 LiteMax NXT on its own:

·Your model number starts with CS and appears in the stand-alone rows of the table if you are included.

·Check the manufacture date on the base label. Plenty of stand-alone seats were bought after the production change and are not affected at all.

·If you bought the accessory rotating base (CS900610000) for a second car, check that base separately. It is on the list.

·If you also own the non-rotating LiteMax NXT base, you already own your simplest interim fix:

Option 2 above.

·Register the seat for the repair kit, and keep the photo of your label somewhere you can find it later.

Due Any Day and the Kit Has Not Arrived?

If your due date is close, this recall probably landed at the worst possible moment, right in the middle of hospital bags and nursery lists. Here is the calm version of what to do, because you do have workable options and none of them involve panic buying a different seat at 38 weeks.

Check your seat today, not at the hospital. Do the label check now, while you can still bend, crouch and make phone calls at a normal pace. Two minutes today beats a stressful discovery in the hospital parking lot.

Pick your interim method before the baby comes. If your seat is affected, choose one of Evenflo’s approved options and set it up in advance. The baseless install is the one most expecting parents choose, because it needs nothing you do not already own. Practice it once in your driveway. Belt routing feels fiddly the first time and easy the second, and you want your first attempt to happen before a newborn is in the seat.

Register now. If your seat is affected, register it today. When kits start shipping, you want to be early in the queue, not registering from a hospital bed.

Brief anyone who will drive the baby home. If your partner, a parent or a friend will be driving, show them the setup you chose. The person driving home from the hospital should not be meeting your interim install for the first time in the parking garage.

And the obvious one, said out loud because stress makes people consider it: your baby must ride home in a car seat. There is no version of this recall where riding in someone’s arms is the safer choice. With any one of Evenflo’s approved interim setups, you have a lawful, company approved way to bring your baby home in this exact seat.

What This Recall Means for Our Review of This Seat

We have already reviewed this seat in full. Our Evenflo Revolve180 LiteMax NXT review covers the rotation, the SensorySoothe handle features, installation and daily use in detail, and we are adding a clear recall notice to the top of that review so nobody reads it without seeing this page too.

So, does the recall change our view of the seat? It changes our advice in one specific way. The seat’s core design, the carrier, the harness, the rotation concept, is not what failed. What failed is the calibration of a gauge on early production bases, and only on bases made before April 1, 2025. If you are buying this seat new today, current production has the corrected indicator, and this recall is not a reason to cross it off your list by itself. If you already own an early production seat, the recall does not mean you bought a bad product. It means you should do the label check, register, use one of the interim setups, and install the free kit when it lands. That is a hassle, and it is fair to be annoyed by it, but it is a fixable hassle with a clear path.

It is also worth saying how normal this is in the car seat world. Graco, Chicco, Britax, Cybex and Evenflo have all run recalls, because these products are tested hard, standards are strict, and companies are required to act when testing finds a problem. What separates a good recall response from a poor one is whether parents get a free fix, clear instructions for the meantime, and a way to reach a human. On those three counts, Evenflo’s response here is solid: a free kit, five approved interim options, and a staffed support line. Our Evenflo Shyft DualRide review covers the sister seat in the same family if you are comparing within the brand.

We will update this article when the repair kit starts shipping and when Evenflo publishes the kit instructions, so bookmark it if your seat is on the list.

Frequently Asked Questions

Q.1 Is my seat recalled if I have the regular LiteMax NXT with the stationary base?

No. This recall only covers the Revolve180 LiteMax NXT with the rotating base, and only units made before April 1, 2025 with a model number on Evenflo’s list. The standard LiteMax NXT sold with the non-rotating base is not included, and neither is any other Evenflo model.

Q.2 Can I keep using the seat while I wait for the repair kit?

Yes, if you follow Evenflo’s interim guidance. The approved options are: install the carrier without the rotating base, use a compatible non-rotating LiteMax NXT base, use the rotating base together with a load leg, use the rotating base with a slightly adjusted recline after getting guidance from ParentLink, or use the carrier outside the vehicle on a stroller. What you should not do is keep using the rotating base exactly as before while relying on its indicator window, since that window is the part that may read wrong.

Q.3 What is in the repair kit, and when will I get it?

Evenflo says the free repair kit is still being finalized and will be sent to registered owners as soon as it is available, with instructions. Owner letters for the recall were scheduled to begin mailing after September 1, 2026, and a second notice will follow when the remedy is ready. The single most useful thing you can do is register your seat now, because kits go to the owners Evenflo can reach.

Q.4 Should I return the seat to the store where I bought it?

No. Evenflo specifically tells owners not to return the seat to the retailer. The store cannot repair the base. Register the seat with Evenflo instead, use one of the approved interim setups, and the free repair kit will come to you.

Q.5 Does the recall include the stroller from my Shyft Intuiti travel system?

No. The stroller is not recalled, and neither is using the carrier clicked onto the stroller. The problem is limited to the recline indicator on the rotating car seat base used in the vehicle. If your travel system model number is on the list, it is the base in your car that needs the check and, eventually, the repair kit.

Q.6 My seat was made after April 1, 2025. Do I need to do anything?

No. Seats manufactured on or after April 1, 2025 were built with the corrected indicator and are not part of the recall, even if the model number matches the list. Both conditions, a listed model number and a manufacture date before April 1, 2025, have to be true for a seat to be included.
